All products

- Heat, cooling, water, gas
- One-time payment per measurement point
- License term: 10 years

How to order:
By phone, email, online store, or cloud account

- Full version with all features

Details about the Professional License:
https://dok.smart-me.com/planung/cloud-lizenzen

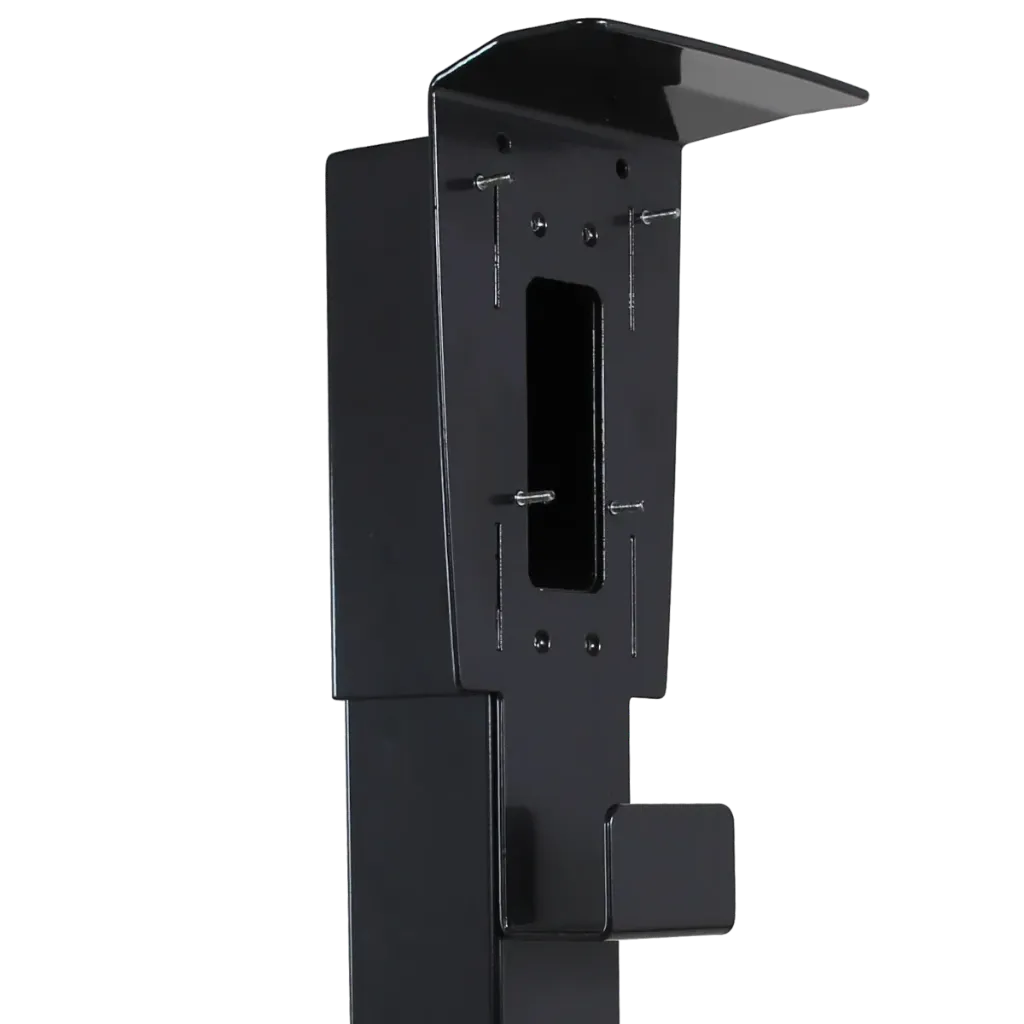

Pole head for mounting 1x Pico charging station
- Includes protective canopy
- Includes cable holder
- Includes cable dock

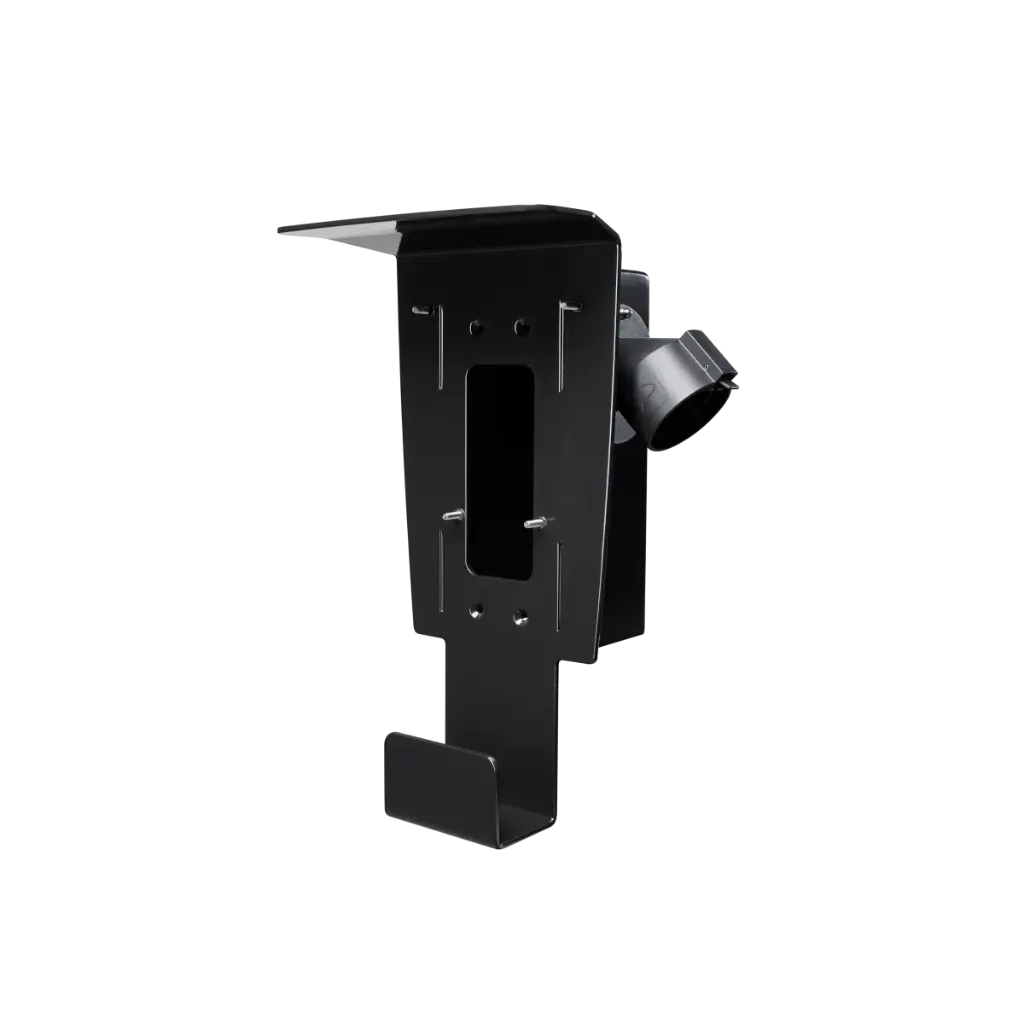

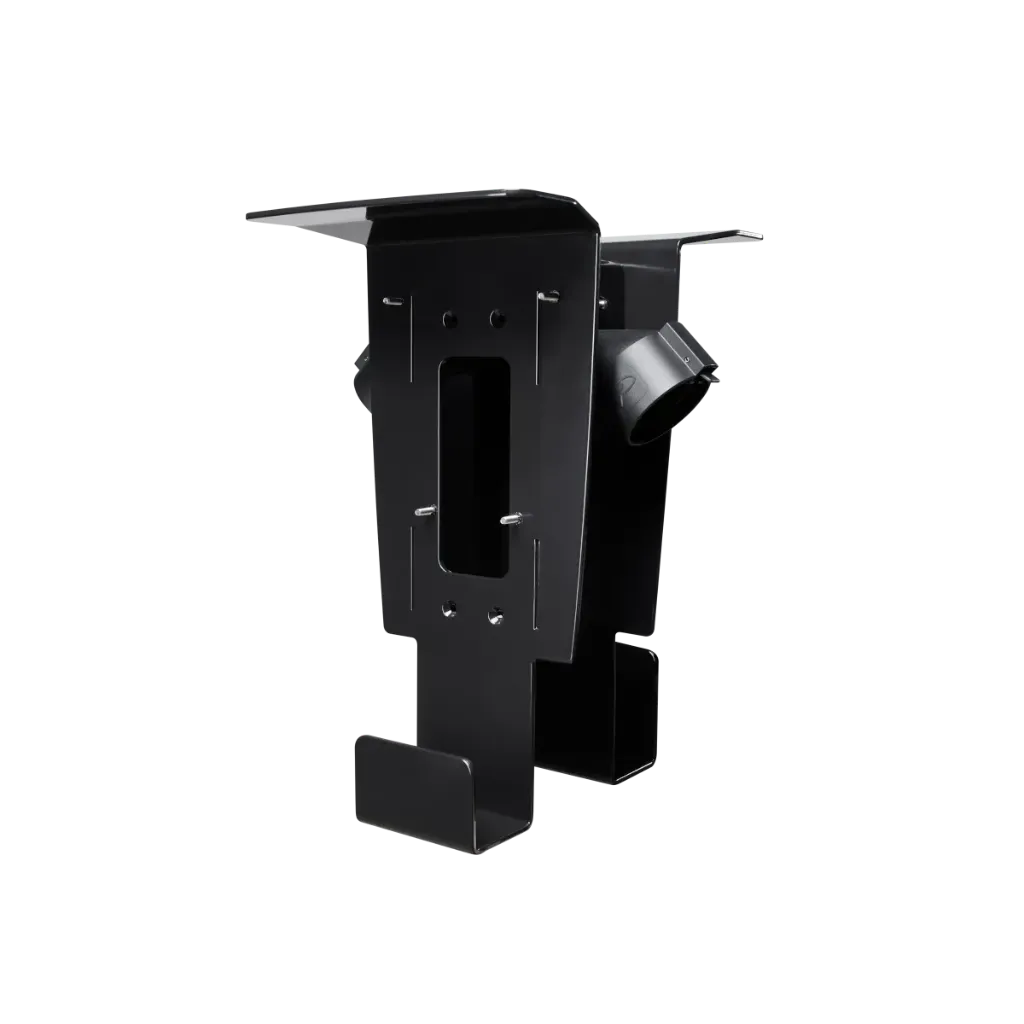

Pole head for mounting 2x Pico charging station
- Includes protective canopy
- Includes cable holder
- Includes 2x cable docks

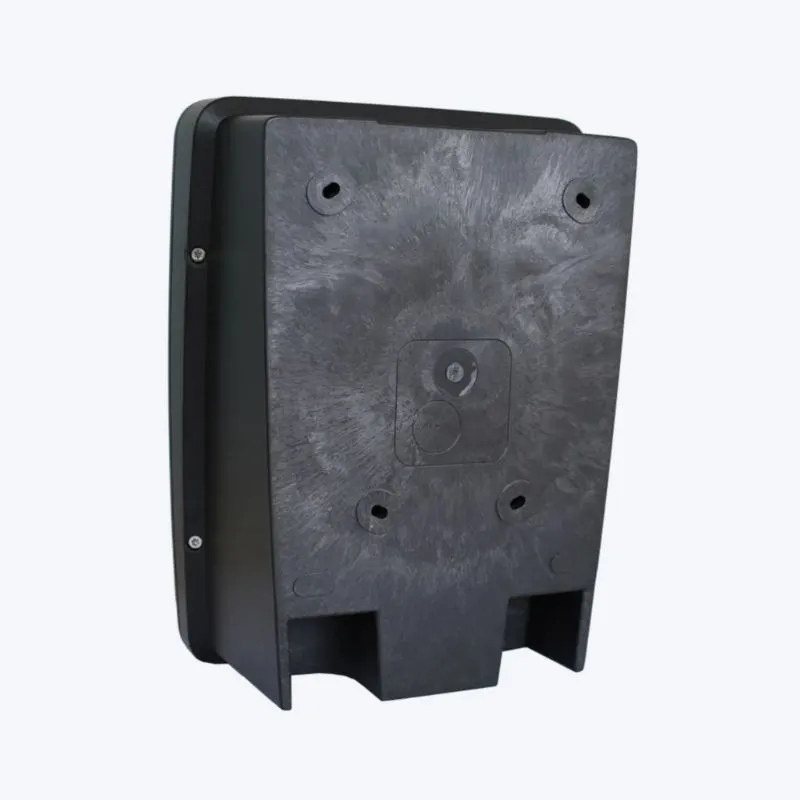

What's Included:
- Backplate
- Installation hardware
- Blind cover

This preparation kit allows you to install base plates on-site without the Pico electronics. The electronics can be easily connected and secured later.

Transmits data from M-Bus meters to the Smart-me Cloud via WiFi.
- DIN rail mounting - 2 MW
- Internal power supply: max. 50 standard loads
- Offline storage capacity: max. 6,000 telegrams
- Communication: 2.4 GHz WiFi

All technical information and compatibility details:
https://dok.smart-me.com/produkte/m-bus-gateway

Check the compatibility of M-Bus meters in advance using our list on the Wiki

Base for installing Pico charging stations.

Note:
This product must be used in combination with a mounting head:
- 212070-PL/PH1
- 212070-PL/PH2
- 232070-PL/PH1
- 232070-PL/PH2

- All energy types or virtual meters
- One-time payment per metering point
- License term: 10 years

How to order:
By phone, email, online store, or cloud account

- Full version with all features

Details about the Professional License:
https://dok.smart-me.com/planung/cloud-lizenzen

- Payment method: One-time payment per charging point
- Term of use: 10 years

Features
- Maintenance of OCPP stations
- Reports (stations and users)
- Advanced user management
- Hubject charging network integration
- Load profile data import for selected OCPP stations

Note: A license is required for each charging point

- Current range: up to 100A
- Accuracy class: B (MID) / 2 (IEC)
- Active and reactive energy
- Mounting on DIN 43857-1 meter mounting plate
- Compatible with various meter plug-in terminals
- Customer interface DSMR P1 V5.0.2
- Encrypted real-time data to the smart-me Cloud
- Signed meter reading history according to OCMF

All technical information:
https://dok.smart-me.com/produkte/Nimbus

Current measurement with external transformers
- DIN rail - 5 MW
- Real-time energy data
- MID 2014/32/EU
- CH load profile
- Reactive energy
- 2.4 GHz Wi-Fi communication

All technical information:
https://dok.smart-me.com/produkte/Telstar-CT

NOTE:
Requires third-party transformers:
https://dok.smart-me.com/drittprodukte/Stromwandler

smart-me Blind Cover for Pico Base (Replacement)

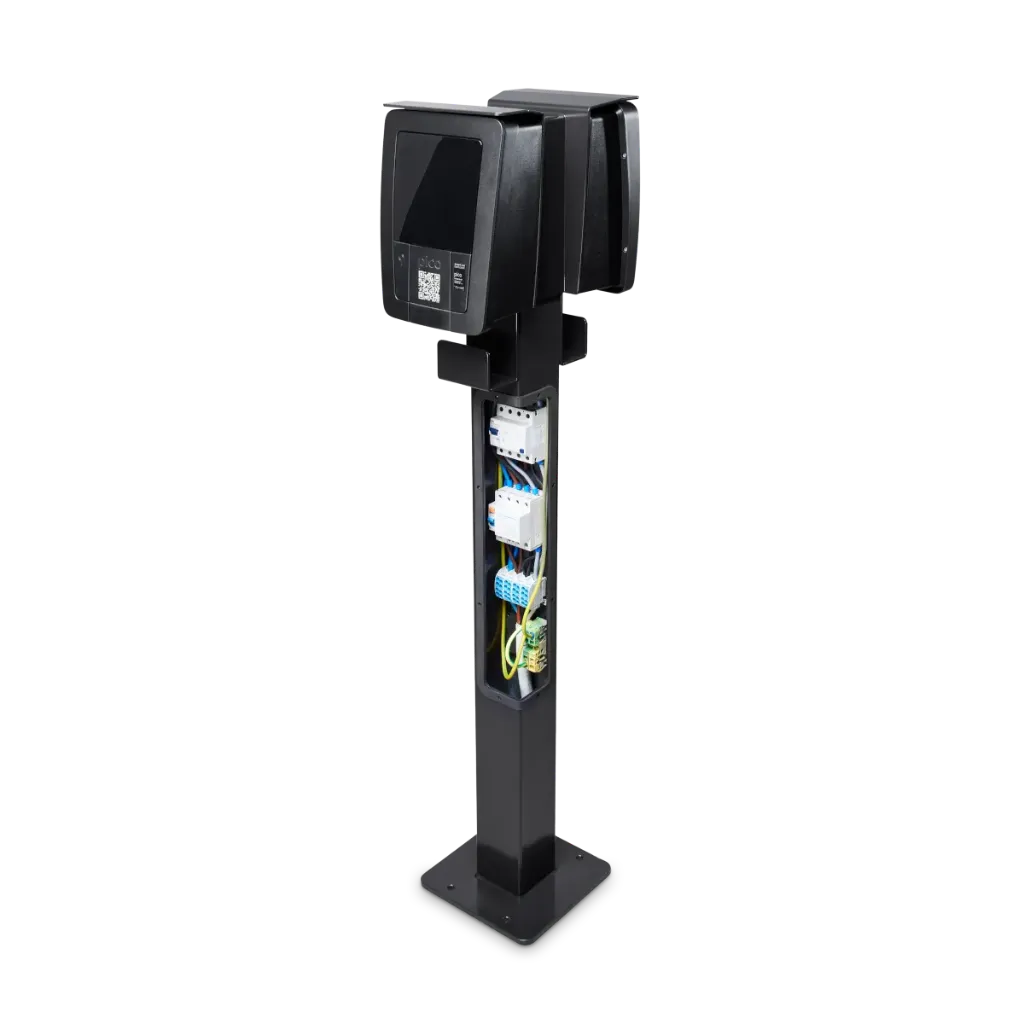

Charging station base with service access for mounting one or two Pico charging stations.

Note: This product must be used in combination with a mounting head:
- 212070-PL/PH1
- 212070-PL/PH2
- 232070-PL/PH1
- 232070-PL/PH2

Scope of delivery:
- Base
- Service cover
- Gasket
- Screws
- 4x terminal blocks for phases and neutral conductor
- 2x terminal blocks for PE connection

- One-time payment per charging point
- License term: 10 years

Features
- Maintenance of OCPP stations
- Reports (stations and users)
- Advanced user management
- Hubject charging network integration
- Load profile data import for selected OCPP stations
- smart-me Professional features

Note: A license is required for each charging point

- Direct measurement up to 80 Arms per phase.
- DIN rail - 5 MW
- Real-time data directly to the cloud
- WiFi 2.4GHz
- MID 2014/32/EU
- CH load profile
- Reactive power
- Data backup: 2 months locally

All technical information:
https://dok.smart-me.com/produkte/telstar

Transmits data from M-Bus meters to the smart-me Cloud via WiFi.
- DIN rail mounting - 6 MW
- Power supply max. 250 standard loads
- Offline storage capacity: max. 130,000 telegrams
- Communication: WiFi 2.4 GHz

All technical information and compatibility details:
https://dok.smart-me.com/produkte/m-bus-gateway

Check the compatibility of M-Bus meters in advance using our list on the Wiki

Prerequisite: Existing smart-me Professional license (10 years)
Note: A license is required for each charging point

Requirement: Existing ecarup Premium license (10 years)
Note: A license is required for each charging point

- Real-time data directly to the cloud
- Up to 80 arms
- DIN rail - 2 MW
- Product certification: CE, RED
- Digital input / tariff input: 1x
- Digital output: 1x
- Communication: WiFi 2.4 GHz

All technical information:
https://doc.smart-me.com/products/single-phase-meter

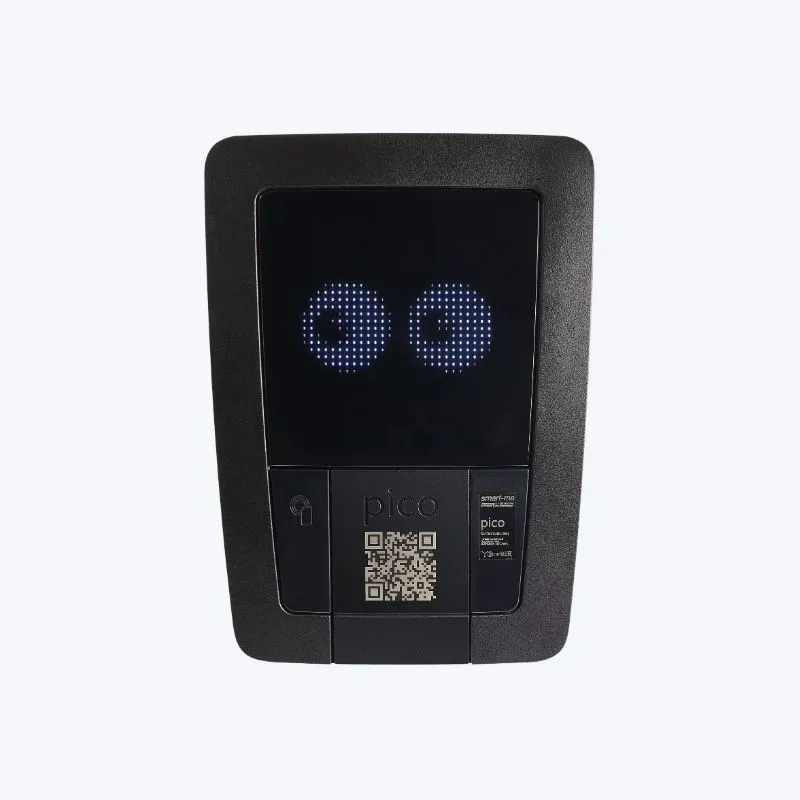

- Output power up to 22 kW
- Identification via RFID, CarID, app
- Real-time data transmitted directly to the cloud
- Smart meter compliant with MID 2014/32/EU
- German Eichrecht
- CH load profile
- Dynamic load management with phase balancing
- Phase balancing function
- IEC 62196-2 Type 2 charging socket
- WiFi (2.4 GHz) and cellular (LTE)
- 10-year mobile data subscription included
- Data backup storage: 2 months locally

All technical information:
https://dok.smart-me.com/produkte/pico-ladestation

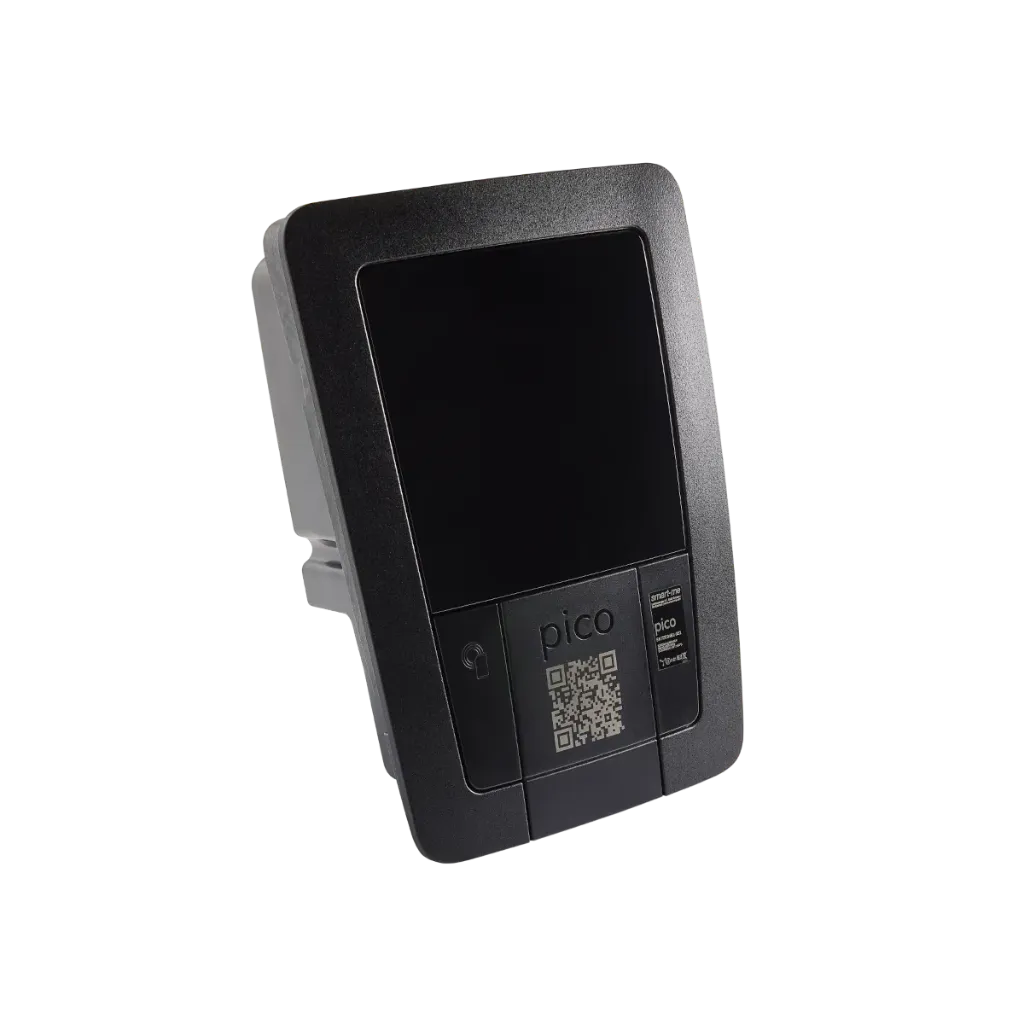

- Output power up to 22 kW
- Identification via RFID, CarID, app
- Real-time data transmitted directly to the cloud
- Smart meter compliant with MID 2014/32/EU
- German Eichrecht
- CH load profile
- Dynamic load management with phase balancing
- Phase balancing function
- IEC 62196-2 Type 2 charging socket
- WiFi (2.4 GHz) and cellular (LTE)
- 10-year mobile data subscription included
- Data backup storage: 2 months locally

All technical information:
https://dok.smart-me.com/produkte/pico-ladestation

Pole head for mounting 1x Pico charging station
- Includes protective canopy
- Includes cable holder
