Meter

Transmits data from M-Bus meters to the Smart-me Cloud via WiFi.
- DIN rail mounting - 2 MW
- Internal power supply: max. 50 standard loads
- Offline storage capacity: max. 6,000 telegrams
- Communication: 2.4 GHz WiFi

All technical information and compatibility details:
https://dok.smart-me.com/produkte/m-bus-gateway

Check the compatibility of M-Bus meters in advance using our list on the Wiki

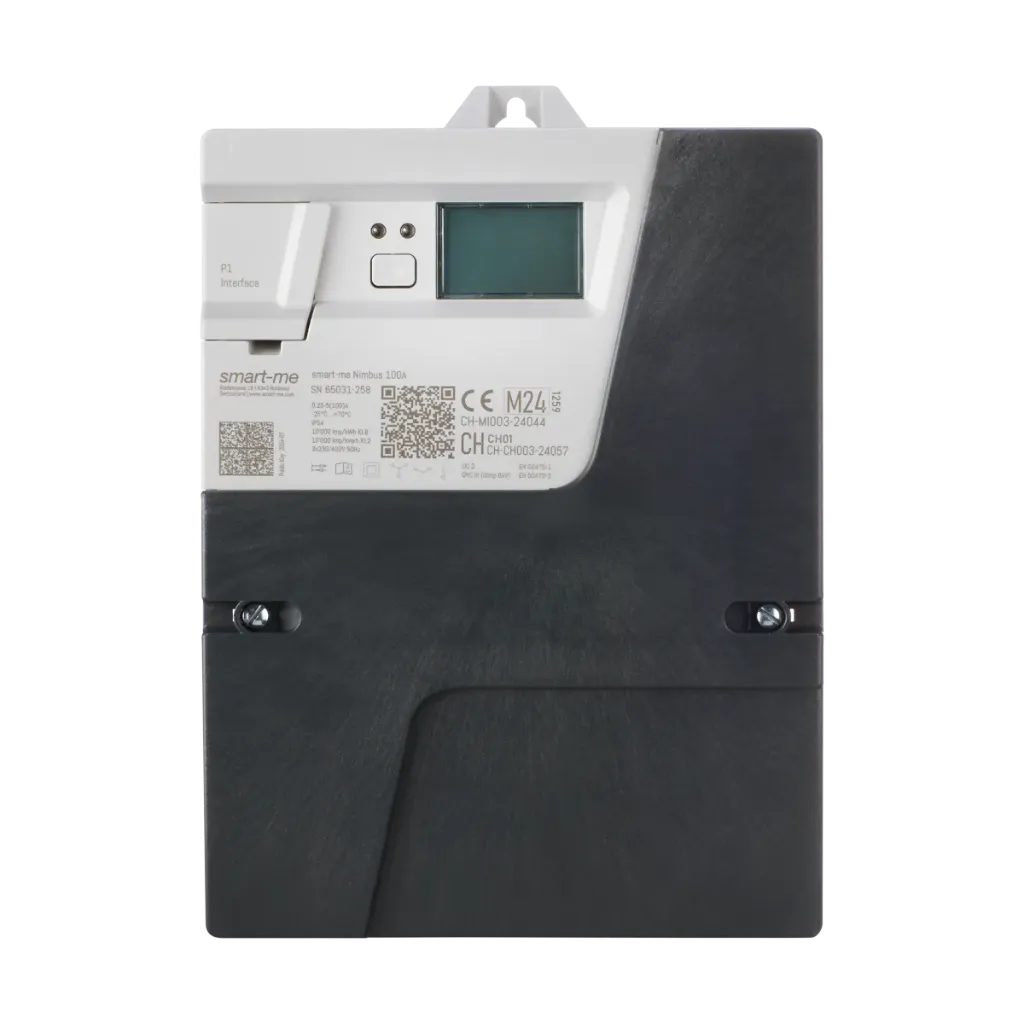

- Current range: up to 100A
- Accuracy class: B (MID) / 2 (IEC)
- Active and reactive energy
- Mounting on DIN 43857-1 meter mounting plate
- Compatible with various meter plug-in terminals
- Customer interface DSMR P1 V5.0.2
- Encrypted real-time data to the smart-me Cloud
- Signed meter reading history according to OCMF

All technical information:
https://dok.smart-me.com/produkte/Nimbus

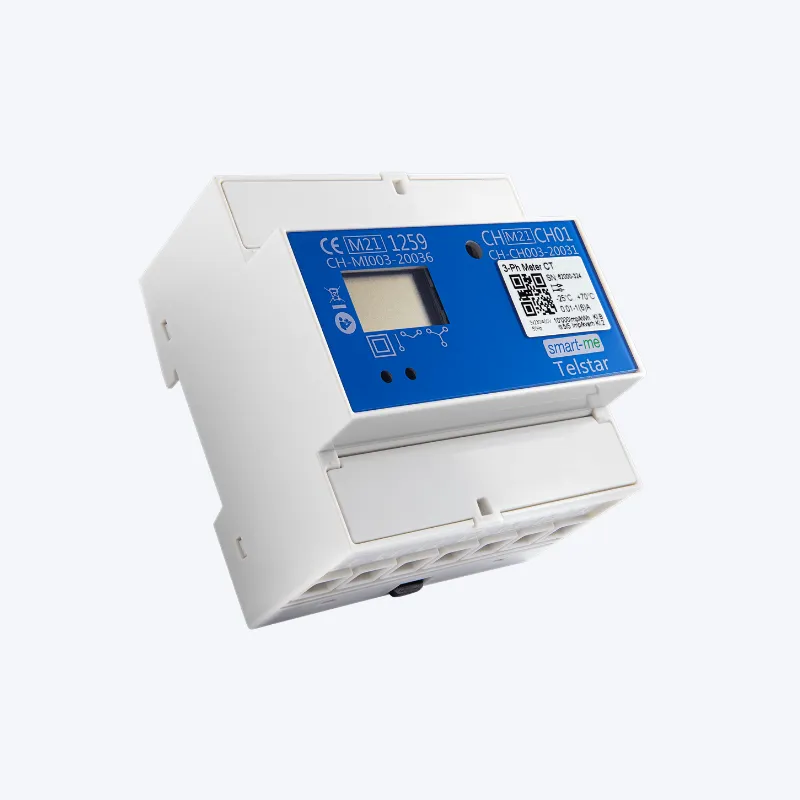

Current measurement with external transformers
- DIN rail - 5 MW
- Real-time energy data
- MID 2014/32/EU
- CH load profile
- Reactive energy
- 2.4 GHz Wi-Fi communication

All technical information:
https://dok.smart-me.com/produkte/Telstar-CT

NOTE:
Requires third-party transformers:
https://dok.smart-me.com/drittprodukte/Stromwandler

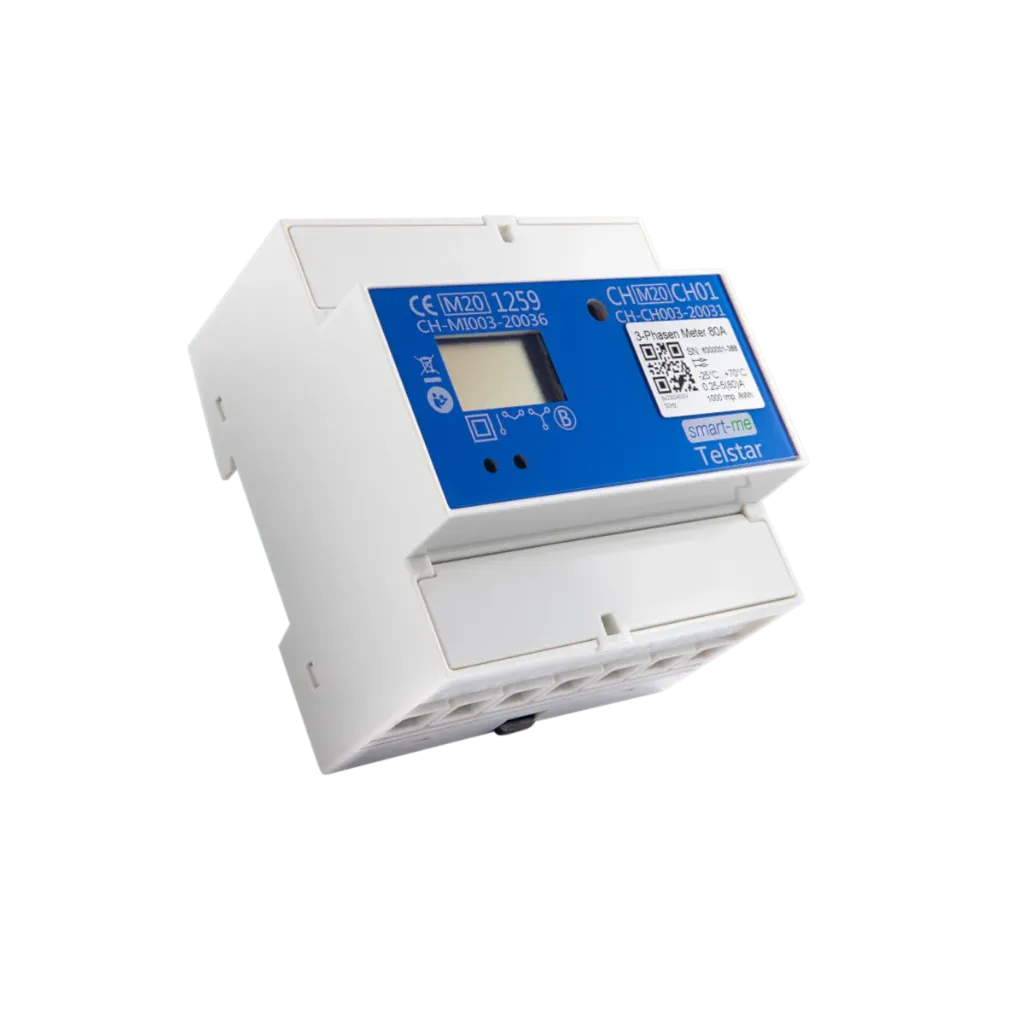

- Direct measurement up to 80 Arms per phase.
- DIN rail - 5 MW
- Real-time data directly to the cloud
- WiFi 2.4GHz
- MID 2014/32/EU
- CH load profile
- Reactive power
- Data backup: 2 months locally

All technical information:
https://dok.smart-me.com/produkte/telstar

Transmits data from M-Bus meters to the smart-me Cloud via WiFi.
- DIN rail mounting - 6 MW
- Power supply max. 250 standard loads
- Offline storage capacity: max. 130,000 telegrams
- Communication: WiFi 2.4 GHz

All technical information and compatibility details:
https://dok.smart-me.com/produkte/m-bus-gateway

Check the compatibility of M-Bus meters in advance using our list on the Wiki

- Real-time data directly to the cloud
- Up to 80 arms
- DIN rail - 2 MW
- Product certification: CE, RED
- Digital input / tariff input: 1x
- Digital output: 1x
- Communication: WiFi 2.4 GHz

All technical information:
https://doc.smart-me.com/products/single-phase-meter
